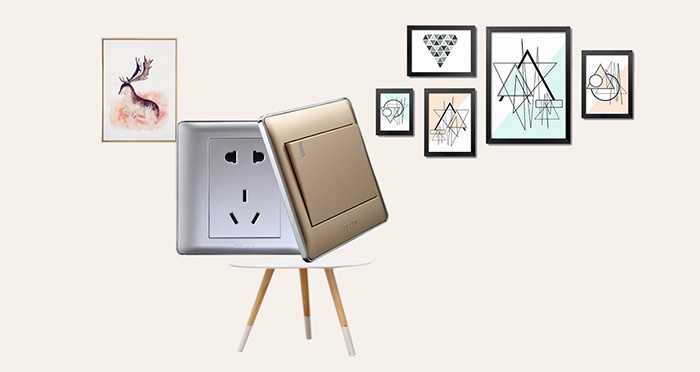

Switch sockets are an indispensable part of the renovation of new homes. These small items determine the power consumption of homes in the future, so you need to know more about switch sockets when purchasing or installing. Today, GELAN Xiaobian tells you about the knowledge of switch sockets. The commonly used wall switch socket panel is divided into 86 type switch socket panel, 118 type switch socket panel and 120 type switch socket panel.

1, 86 type switch socket panel:

The square length and width are 86 mm x 86 mm, which is the most commonly used and most styled panel and is also a standard panel.

2, 118 type switch socket panel:

The freely combined rectangular panels can be combined into any function according to their own requirements. The functional parts can be selected, usually horizontally mounted, in three sizes:

118 mm x 72 mm, can hold one or two functional parts, also known as small boxes.

155mm x 72mm, can be equipped with three functional parts, also known as the middle box.

197 mm x 72 mm, it can hold four functional parts, also known as a large box.

Similarly, the matching cassettes are also divided into three sizes. When purchasing, pay attention to the size of the cassette to be installed, and how large the switch panel should be installed.

3, 120 type switch socket panel

Free combination, but vertical installation, but also a combination of frame and function, but the size will be slightly larger, this model is used in these three models, there are four sizes:

120 mm x 74 mm, can hold one or two functional parts, also known as small boxes.

156mm x 74mm, can be equipped with three functional parts, also known as the middle box.

200 mm x 74 mm, can hold four functional parts, also known as large boxes.

120mm x 120mm, can be equipped with four functional parts, also known as square box, this is special, especially large, is a square.

The above are three types of panels for switch sockets. The 86 models that are currently the most used in the market, other types of panels will be produced less and less in the future, so try to use the 86 model switch socket panel.
